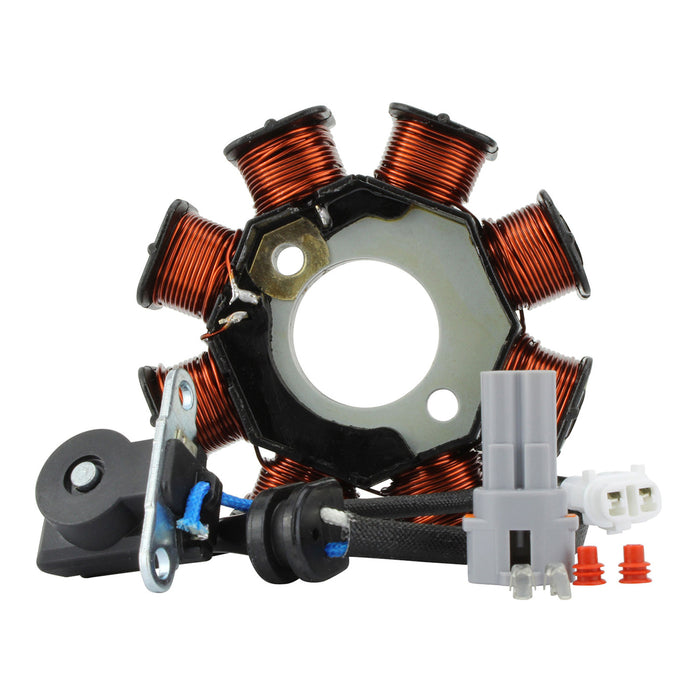

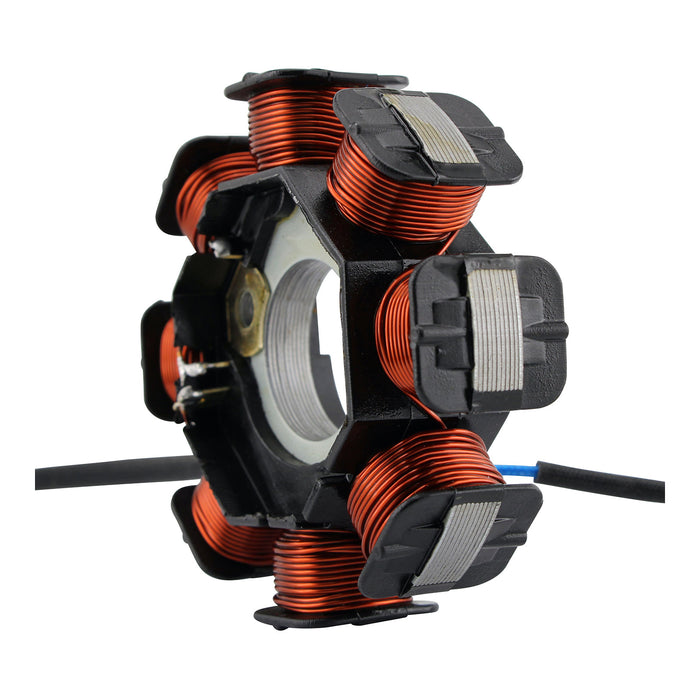

GENERATOR STATOR KAW KLX110 10-21 (RMS010-107078)

GENERATOR STATOR KAW KLX110 10-21 (RMS010-107078)

SKU RMS010107078
by RMSTATOR
$319.99 - $319.99
$319.99
$319.99 - $319.99
$319.99
Only 2 left!

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 150 mm
  • Length of pickup coil's wire to grommet: 120 mm

    • Other specifications:

    • Number of wires: 2
    • Number of plugs: 1
    • Number of pins: 2
    • Number of poles: 8

    Wire-to-wire resistance:

    • Alternator: White to Ground = 1.2 ohms +-20%
    • Pickup: Blue/yellow to Ground = 118 ohms +-20%
