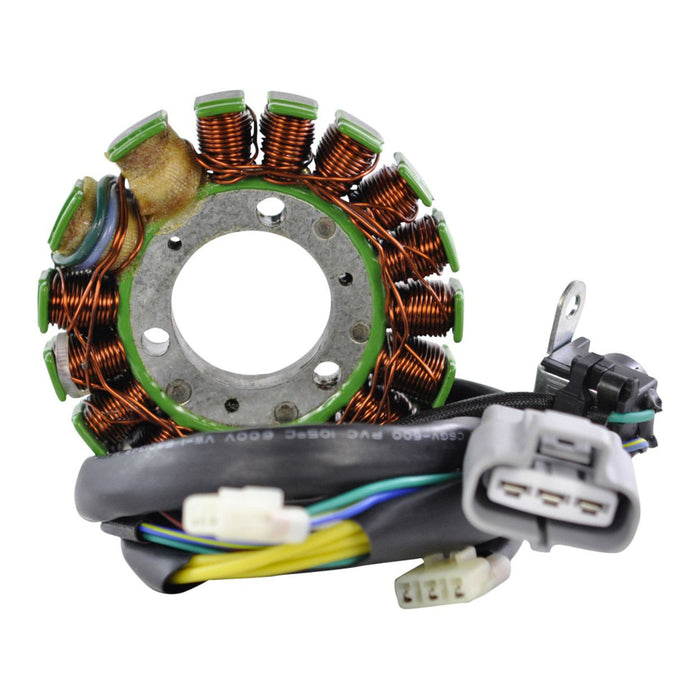

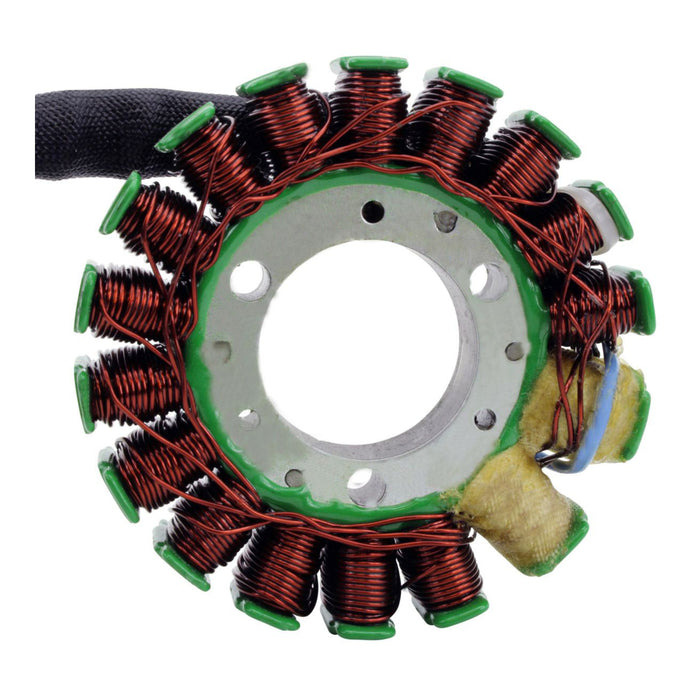

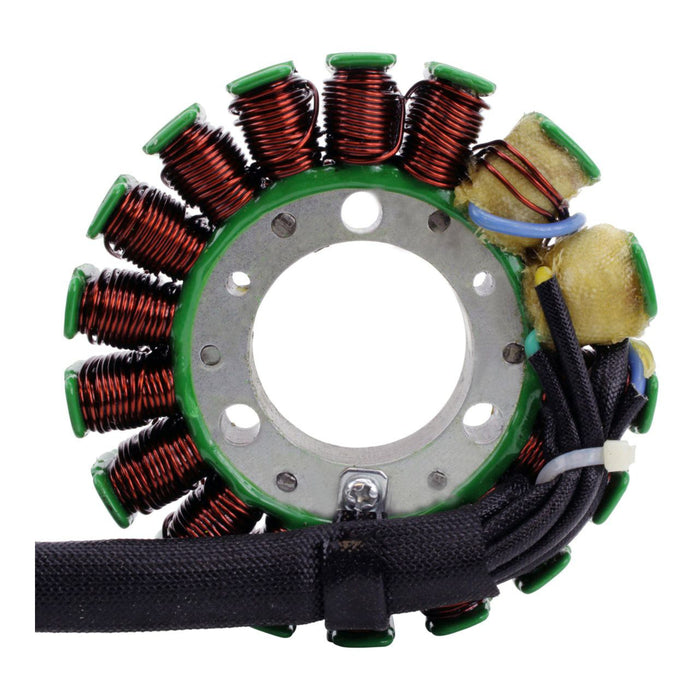

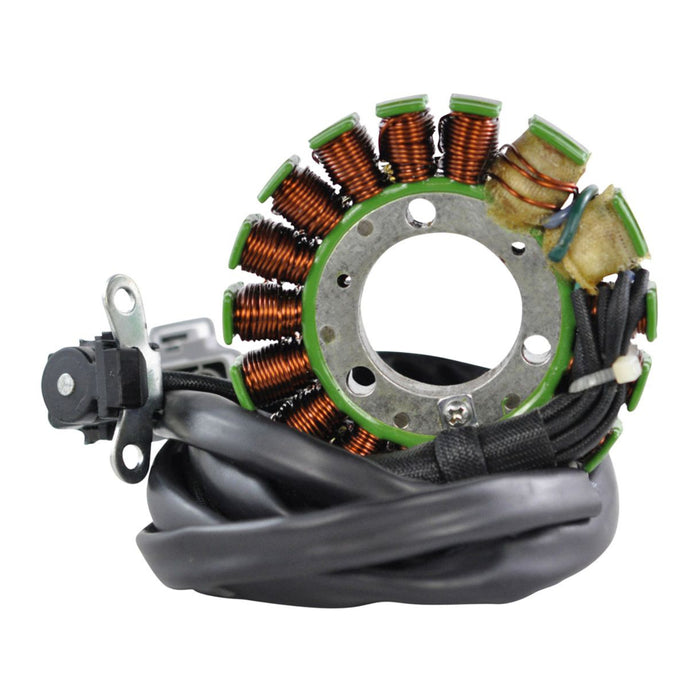

HIGH OUTPUT STATOR HON TRX450R 2004-2005 (RM01108)

Brand new high output stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

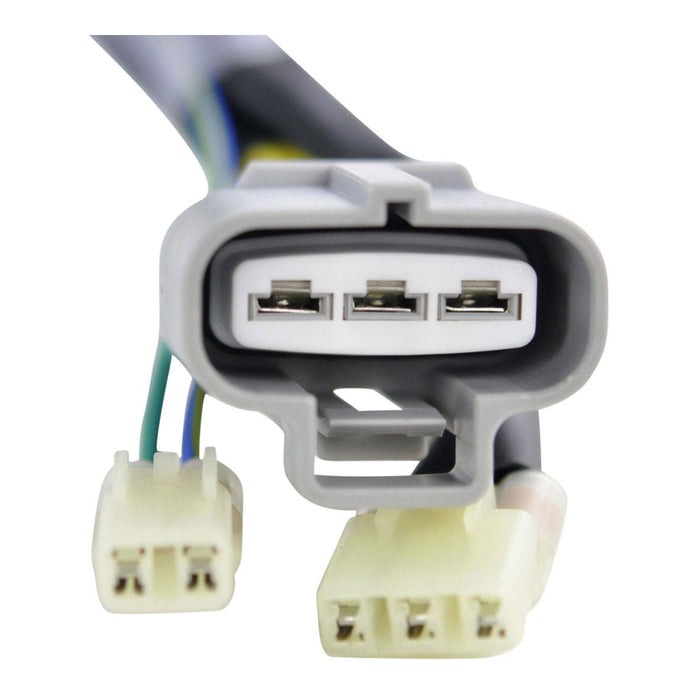

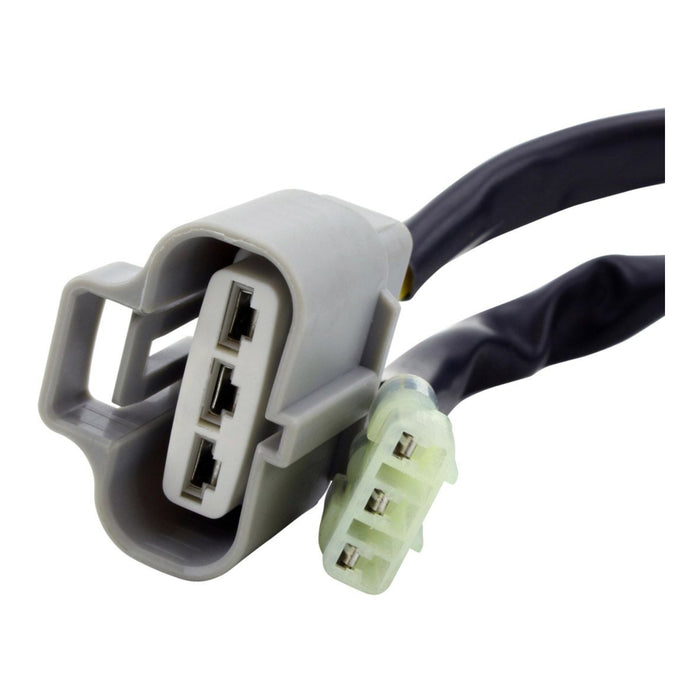

• Connector included
• Back Plate included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

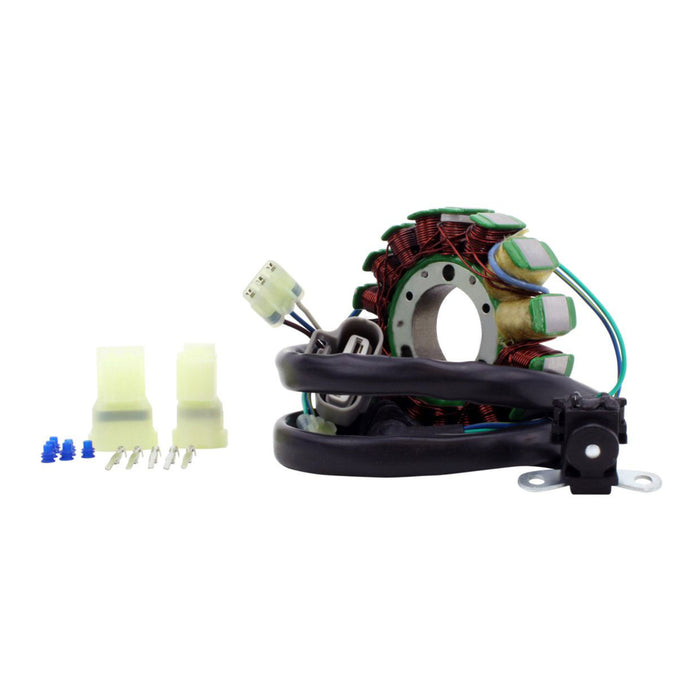

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 34 mm
• Exterior diameter: 92 mm
• Thickness: 15 mm
• Length of wires stator to grommet: 75 mm
• Length of wires grommet to plug:900 mm
• Length of pickup coil's wire to grommet: 80 mm

Other specifications:

• Number of wires: 8
• Number of plugs: 3
• Number of pins: 8

Wire to wire resistance:

• Alternator: Between each Yellow = 0.4 ohms +/-20%
• Alternator: Yellow to Ground = 0.L Pickup : Green to Blue = 250 ohms +/-20%
• Source: Black/Red to Blue = 36 ohms +/-20%
• Source 2: Blue to White = 7 ohms +/-20%

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
