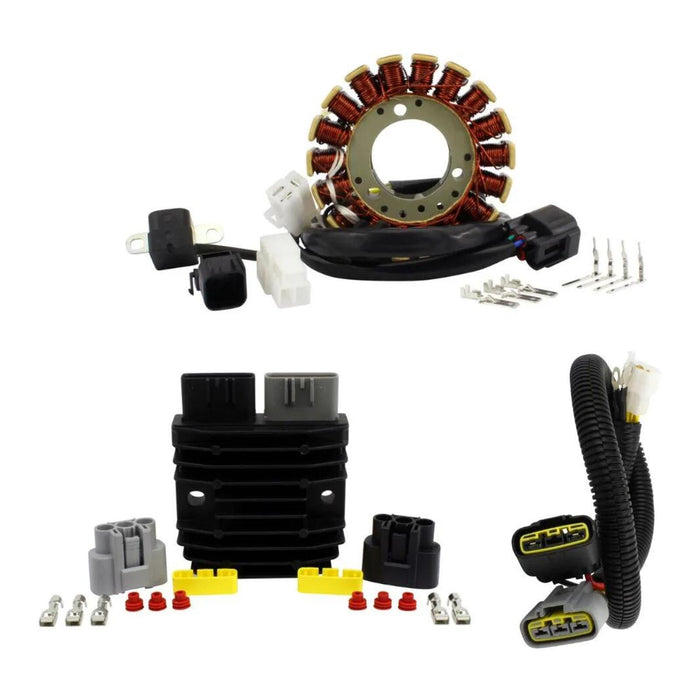

Stator & Regulator Upgrade Kit - Suzuki DRZ400 (RMS900-108988)

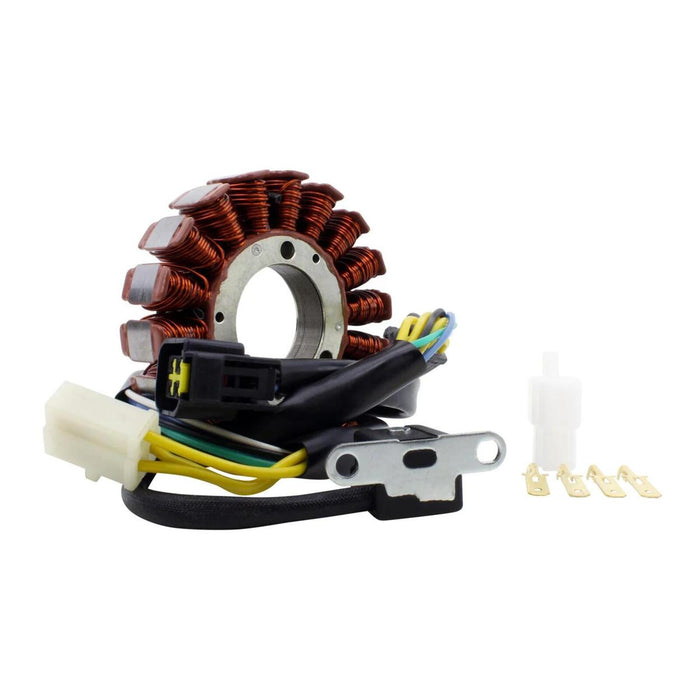

Brand new aftermarket reliability upgrade kit featuring a 200W stator and SERIES voltage regulator.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- Highest-grade lamination materials.
- Highest-grade copper windings, resistant to temperatures up to 200°C.
- Pickup/pulser coil included.
- Connectors included.
- Rubber grommet included.
- All products are tested before shipping.
20% More Output Over Stock – Works with All Other OEM Components
The kit includes the opposite connector (main harness side), as these connectors are often melted, corroded or defective and can cause recurring electrical issues.
All product images are accurate. If in doubt, compare the item with the original part.
Benefits of SERIES Voltage Regulators
- SERIES regulators run much cooler than shunt and MOSFET voltage regulator/rectifiers, as well as OEM units.
- Power only flows through the electrical components when the battery is charging.
- Reduces current flowing through the stator when it is not in use, helping extend its service life.
- The regulator is easier to mount because it is smaller than the OEM unit.
About SERIES Voltage Regulation Technology
RMSTATOR's SERIES voltage regulator provides improved reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt-type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat rather than sending it to the battery. SERIES regulators control battery voltage by intermittently disconnecting the stator coils from the regulator electronics, limiting current flow through the unit and to the battery.
This results in lower regulator and stator temperatures, more accurate voltage regulation and increased reliability of the charging system components.

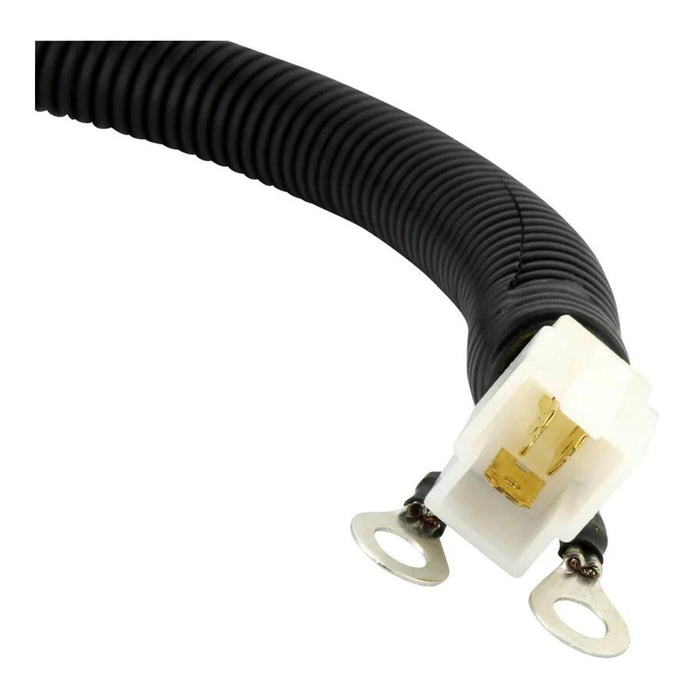

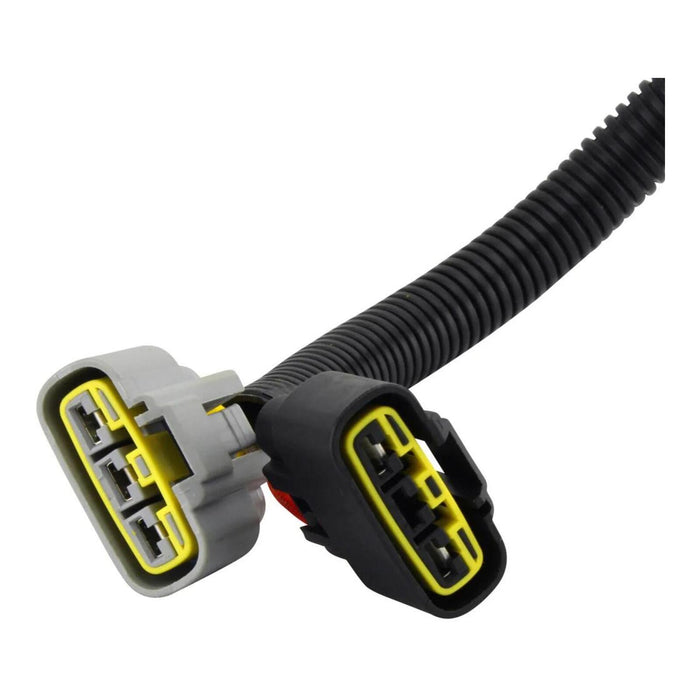

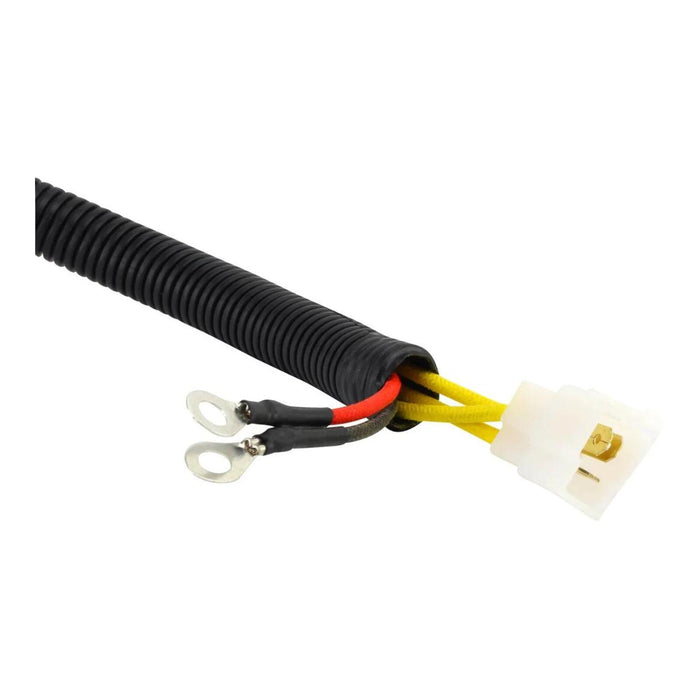

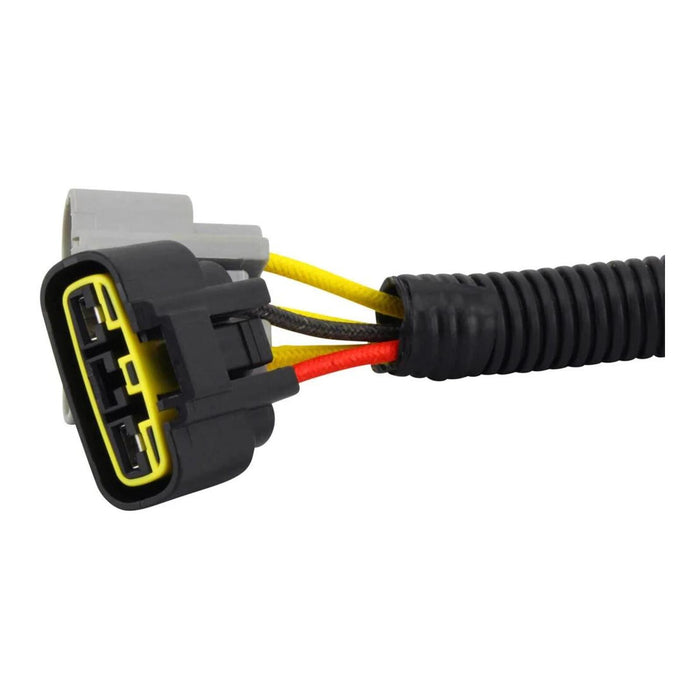

About the Bypass Harness
This bypass harness allows you to connect the new SERIES regulator directly to the battery. It bypasses sections of wiring and multiple connectors in the main wiring harness, providing a safer and more direct connection.
Before Installing the New High-Output Stator and SERIES Voltage Regulator/Rectifier
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Use high-temperature dielectric grease on all connectors.
The stator may use a different wire colour code from the original part. All wires are installed in the correct order; do not change any wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such.
When bolting the stator in place, always use thread-locking compound. If the stator includes a pickup coil, ensure the air gap is correctly adjusted during installation. We recommend setting it as close as possible, but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

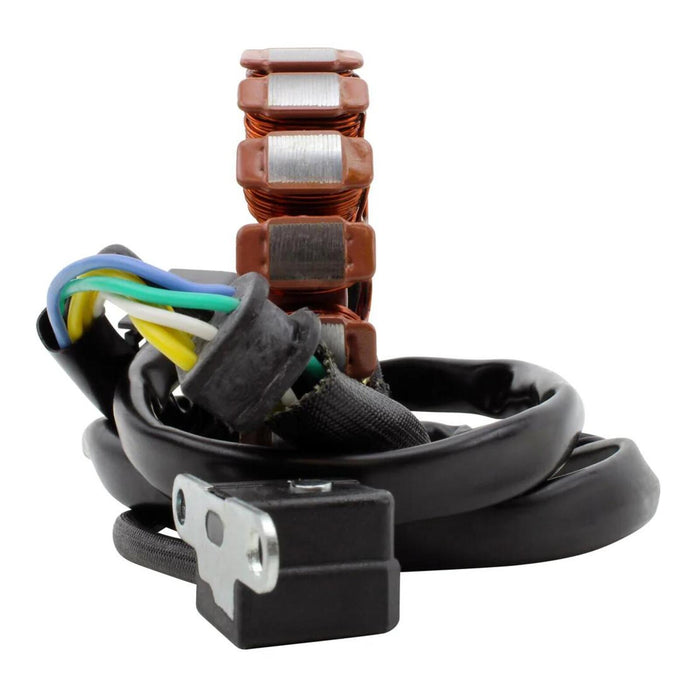

Stator Specifications
Dimensions:
- Interior diameter: 35 mm
- Exterior diameter: 93 mm
- Thickness: 16 mm
- Wire length (stator to grommet): 140 mm
- Wire length (grommet to plug): 540 mm and 670 mm
- Pickup coil wire length (to grommet): 110 mm
Other Specifications:
- Number of wires: 7
- Number of plugs: 2
- Number of pins: 7
- Number of poles: 18
Wire-to-Wire Resistance:
- Alternator (Yellow to Yellow): 0.6 ohms ±20%
- Alternator (Yellow to ground): O.L.
- Pickup coil (Blue to Green): 445 ohms ±20%
- Position sensor (Black to White): 0.2 ohms ±20%

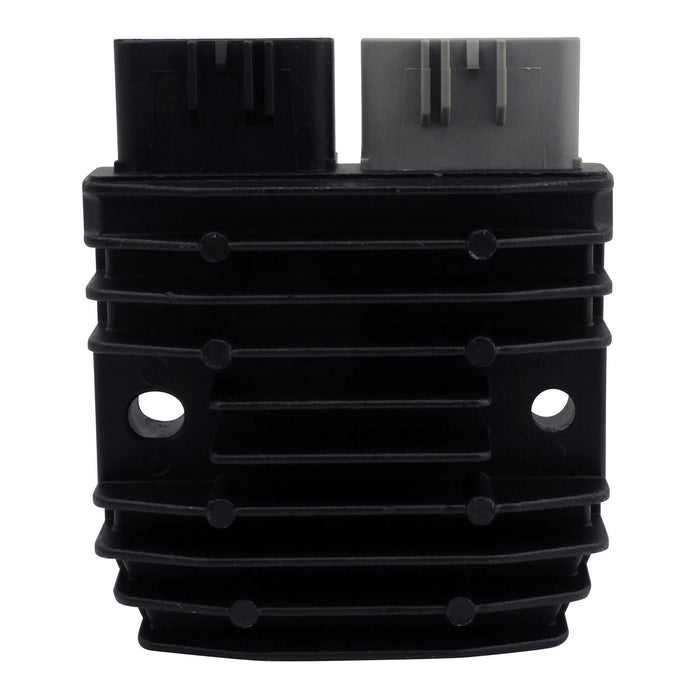

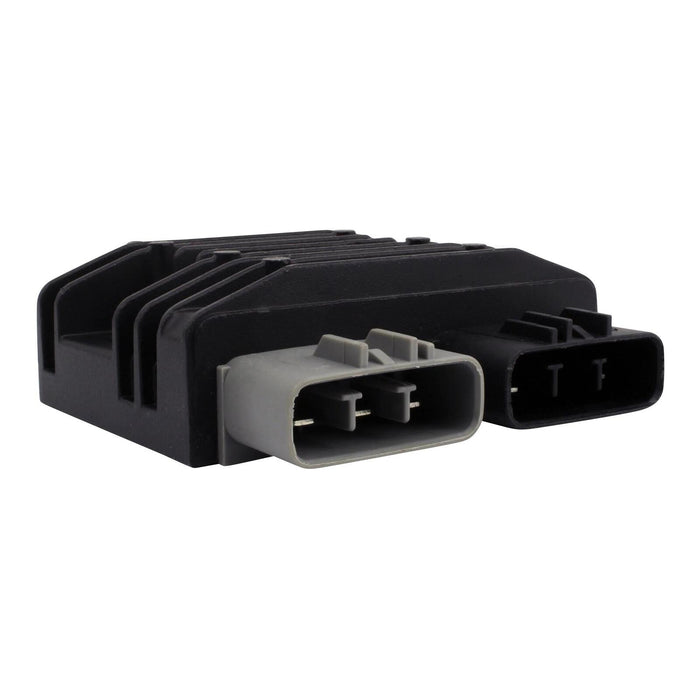

SERIES Regulator Specifications
Dimensions:
- Width: 84 mm
- Length: 90 mm
- Height: 32 mm
- Mounting hole centres: 69 mm
Other Specifications:
- Number of plugs: 2
- Number of pins: 5
- Minimum charging voltage: 14.5 V ±0.5 V
- Maximum charging current: 50 A / 500 W
- Open-circuit voltage: <15 V
- Operating temperature: -20°C to 85°C

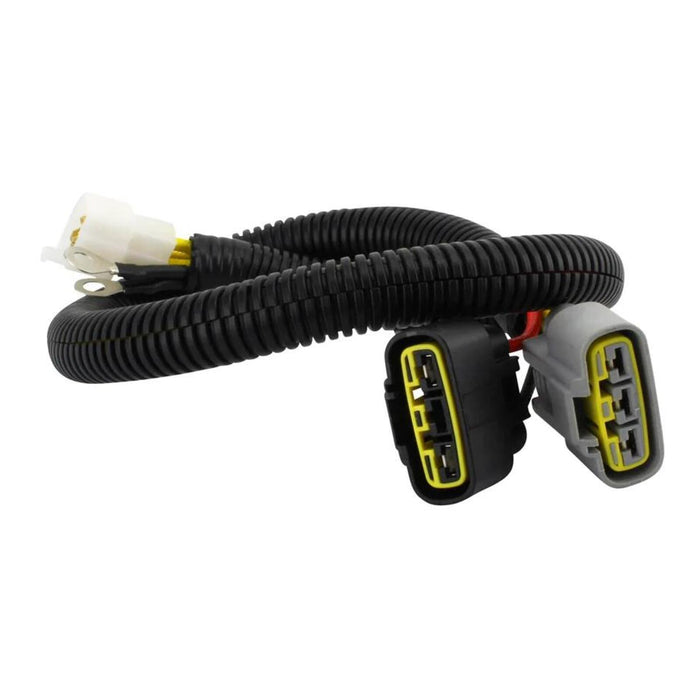

Bypass Harness Specifications
Dimensions:
- Wire length: 640 mm
- Number of plugs: 3
- Number of pins: 5
- Number of wires: 5
